Customized Coil Sheet Automatic Press 3 in 1 Decoiler Straightener Feeder For Making Electric Part

Uncoiler straightener feeder is in the short space design were especially developed to meet the needs of customers with not enough space. They offer process reliability even for the most demanding materials. They are optimally suited for the manufacture of structural parts as well as for processing of high-strength materials - even for the higher ranges of strip thickness.

Send Inquiry

By combination of straightener and roll feed into one machine, so called feeder-straightener, which is positioned directly at the press, the needed space for material loop of straightened material can be saved.

The feeder-straightener is supplied with material out of a (in comparison) very small loop of not straightened material below the decoiler.

The decoiler is equipped with a variable speed drive as well as with a very sensitive loop control. By this way it is assured that there always will be enough material available for supply of the feeder-straightener.

In case that feeding lengths and stroke rates do require a bigger material stock within the material loop, the Coil Feeding Line will be completed with a loop pit.

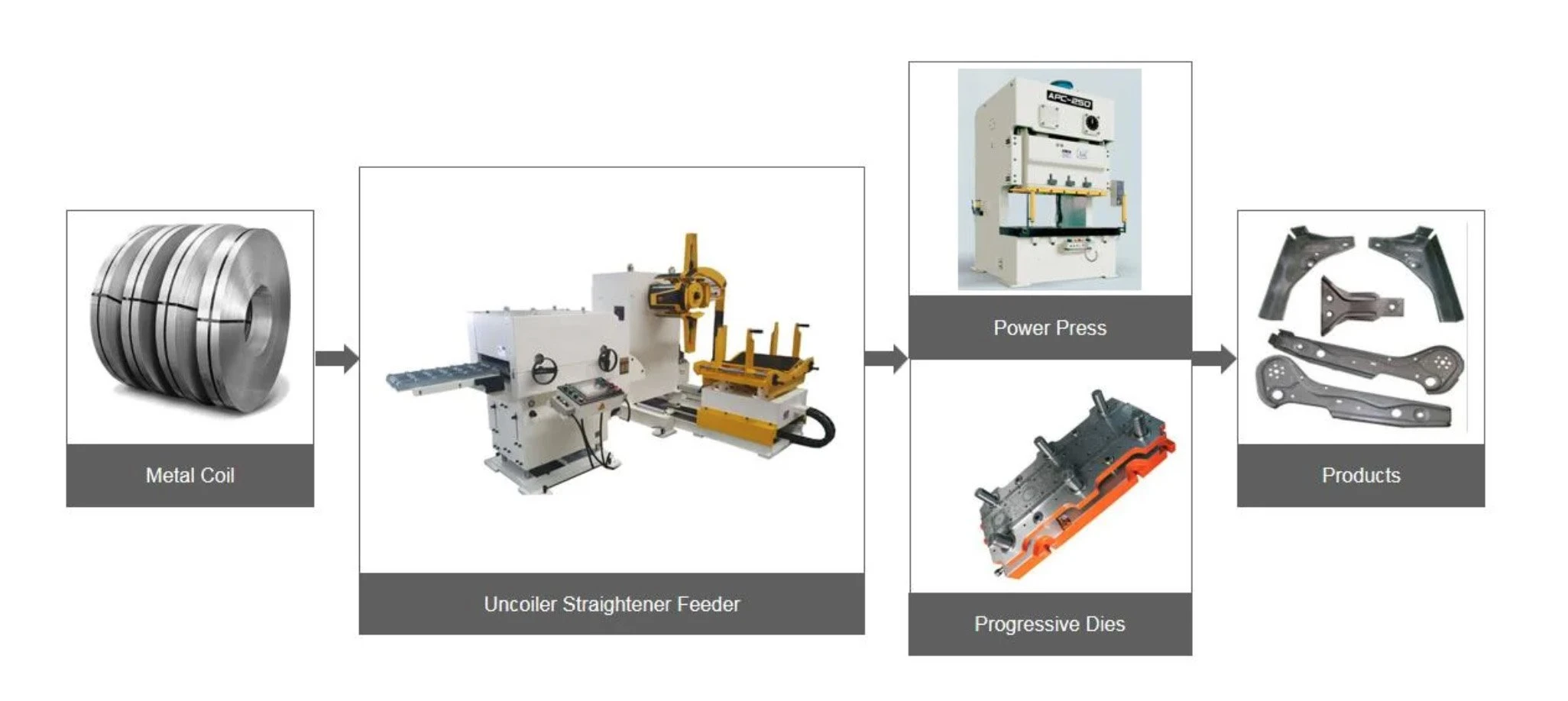

QQ20220809-150120@2x

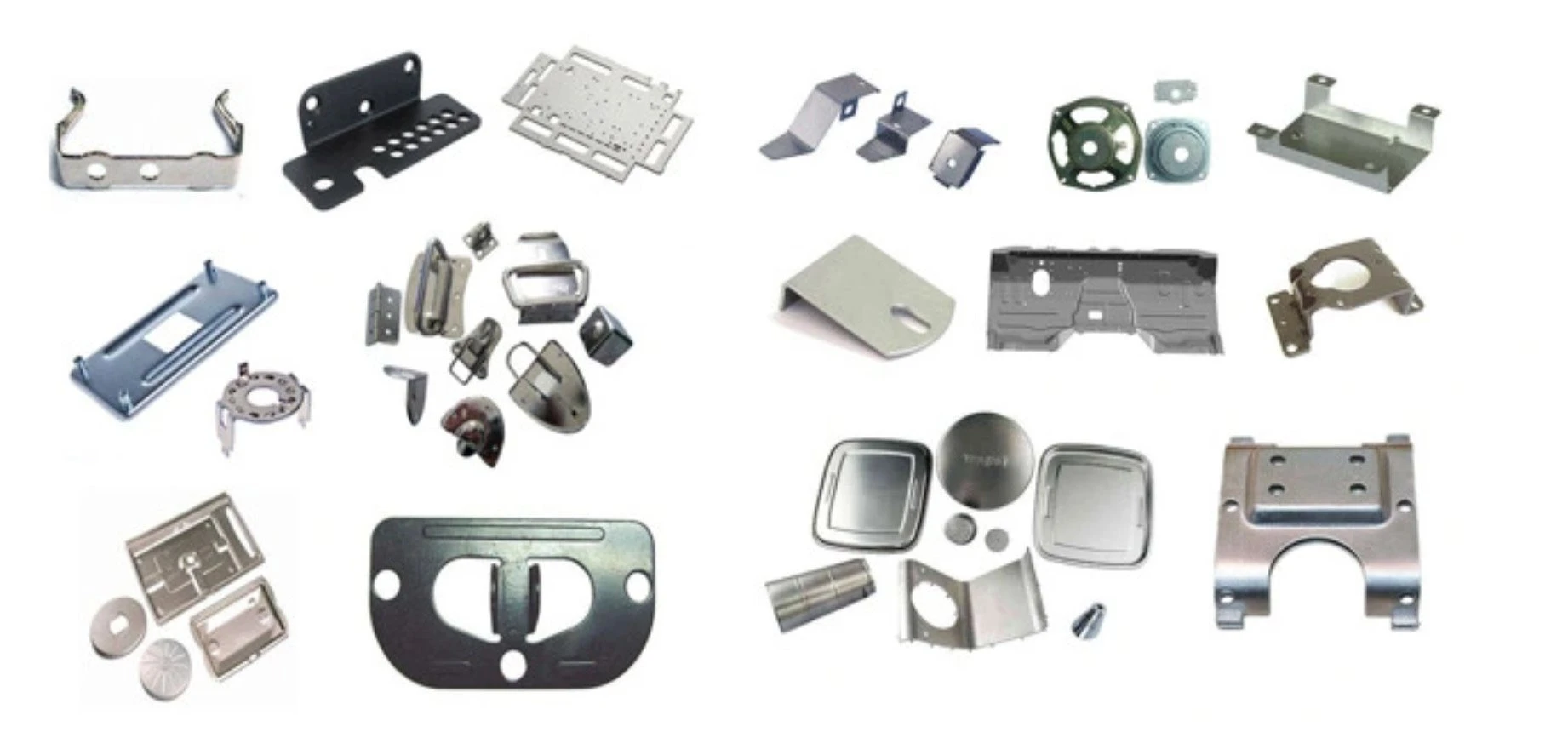

QQ20220809-150102@2x

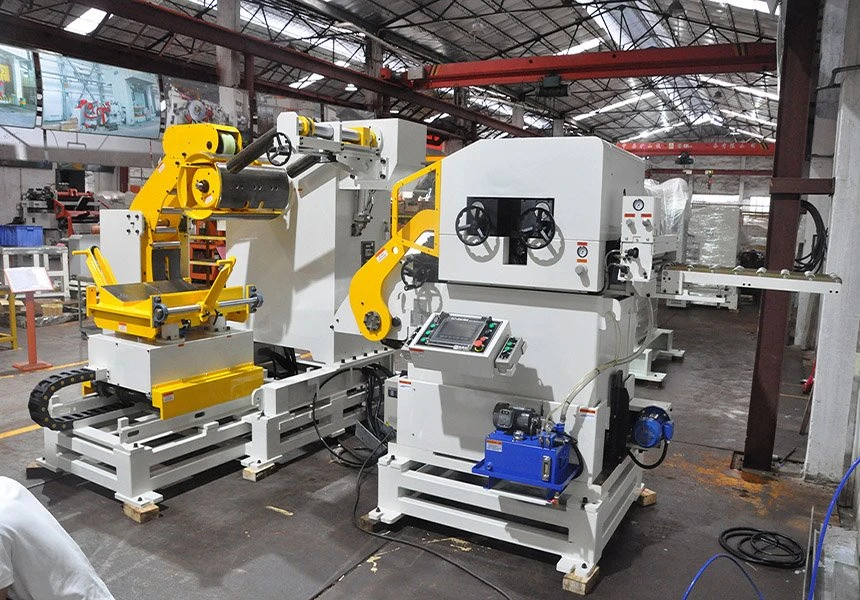

3 in 1 device

Model	DSF1-300		DSF1-400			DSF1-500	DSF1-600	DSF1-800
Coil Width (mm)		50-300		50-400		50-500	50-600	50-800
Material Thickness Range (mm)		0.2-3.0
Max. Loading Weight (kg)		2000			2000	3000-5000	3000-5000	5000-8000
Main Motor (KW)		AC2.0			AC2.0	AC2.2	AC2.2	AC4.4
De-coiler Motor (KW)		0.75			0.75	1.5	1.5	3.7
Coil O.D.		Ø 460-530 mm
Coil I.D.		Ø 1200 mm
Leveling Speed		16-24 m/min
Material Type		Cold rolled steel, hot rolled steel, aluminum, etc.
Leveling Roller		Upper 4pcs / Down 3pcs
Hold Down Arm		Optional
Loading Car		Optional
Mandrel Expansion		Hydraulic
Operating Air		0.49 Mpa

Straightening Performance
Model		DSF1-300	DSF1-400	DSF1-500	DSF1-600
Stock Thickness (mm)	0.2	300	400	500	600
	0.4
	0.6
	0.8
	1				500
	1.2			400	400
	1.4		300	300	300
	1.6	250	250	250	250
	2	190	190	190	190
	2.3	160	160	160	160
	3	100	100	100	100
Remark: Above figures are for the material having yield strength of 245N/mm², tensile strength of 392N/mm²
