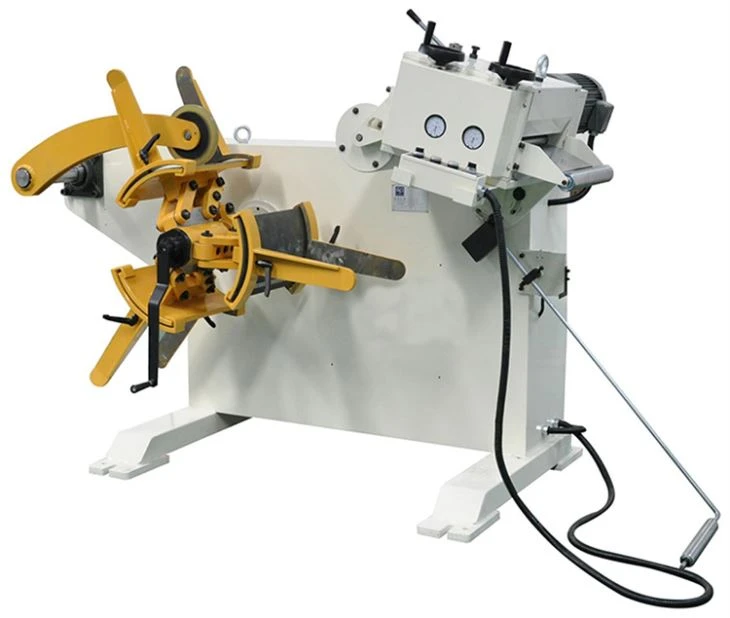

Space Saver Reel Straightener
Company Information
Fanty machinery team has extensive experience in the industry of mechanical system. We are not only provide good quality machine, but also offer best service. We have professional team in charge of R&D and sales consultation, providing best solutions for a variety of new customers in any industry. Also we have rich and professional knowledge in solving machine malfunction.
Shenzhen Fanty Machinery Equipment Co., Ltd is a professional supplier of coil feed line. Our main product is coil steel straightener, servo feeder, decoiler, compact press feeding line, fast servo feeder system, high speed press and related automatic periphery equipment.
Specification for FGL Series Space Saver Reel Straightener | ||||||
Model | GL-200 | GL-300 | GL-400 | GL-500 | GL-600 | |
Material Parameters | Material Max. Width (mm) | 200 | 300 | 400 | 500 | 600 |
Material Thickness Range (mm) | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 | 0.3-3.2 | |
Coil O.D. | Ø 460-530 mm | |||||
Coil I.D. | Ø 1200 mm | |||||
Straightening Speed | 16 m/min | |||||
Material Type | Cold rolled steel, hot rolled steel, aluminum, etc. | |||||
Main Machine | Pinch Roller (mm*qty) | Ø65*2 Inlet 2pcs / Outlet 2pcs | ||||
Flattening Roller (mm*qty) | Ø48*7, Upper 3pcs / Down 4pcs | |||||
Pressing Arm | Optional | |||||
Roller Pressing | Pneumatic rod | |||||
Leveling Adjustment | Eccentric turbine worm adjust | |||||
Mandrel Expansion | Manual | |||||
Electronic Components | Inverter | Delta | ||||
Bearing | NSK | |||||
Servo Motor | Yaskawa | |||||
PLC | Mistubishi | |||||
Man-machine Interface | Weinview | |||||
Characteristics for Space Saver Reel Straightener
1.Suitable for all kinds of metal sheet straightening and unwinding, widely used in metal parts, electron, electrical appliance, toy and auto parts continuous pressing production.
2.Combine uncoiler and straightener to save space.
3.All rollers are hard chrome plated, long service life.
4.Eccentric turbine worm adjusting device is easy for flattening adjust.
5.Timer type electronic control.
6.Steel plate strong structure to ensure stable during working.
7.The pinch and straightening rollers are made of GCr15 steel. Hard chrome plated and the hardness is above HRC 60.
Package and Delivery
Package: Well packed in wooden box, or wrapped with film in container.
Delivery: LCL or FCL by sea.
FAQ
Q: What products do you have?
Automatic Uncoiler
Automatic Straightener
Automatic Feeder
Uncoiler cum Straightener 2 IN 1
NC Straightener Feeder Cum Uncoiler 3 IN 1
Stamping Machine
Q: How to choose 2 in 1 uncoiler leveler machine?
Advising following information, we will make best proposal for your production line.
1. The thickness of the metal sheet
2. The width range of metal coil
3. The maximum weight of metal coil
4. The metal coil inside diameter
5. The metal coil outside diameter
6. Sheet metal decoiling and straightening speed request
Q: How do you make business long-term and maintain good relationship with customers?
We keep good quality and competitive price to ensure our customers’ benefit.
We respect every customer as our friend and we sincerely do business and make friends with them, no matter where are they from.
Q: How long is the warranty period of the machine?
We offer free service with a warranty period of one year and lifelong technical and maintenance training supporting.
