Coil Feed Line for Automotive Stamping
Fanty Machinery
A professional partner for press automation and contributes to the optimization of stamping parts production. Especially where request precision, high speed and reliability feeder.
We focus on the manufacture of Decoiler, Straightener, Feeder, Compact Decoiler & Straightener, Compact Coil Feed Lines.
The application is for components or precision parts in various industries, such as the automotive, electrical and electronics, hardware fittings, armaments, medical technology or rotor/stator lamination.
Coil Feed Line Parameters
This line is specially develop for auto parts stamping.
Including:
15 tons Coil car
Hydraulic Uncoiler
Servo straightener feeder
Specifications
| Model | DSF5-1600H |
| Material application | Hot rolled, cold rolled,staniless steel, SPHC, SPHE |
| Band thickness | Max. 12mm |
| Band width | 100-1600mm |
| Loading coil weight | 15 tons |
| Coil inner diameter | Ø508mm / Ø610mm |
| Coil outer diameter | Ø1400mm |
| Line speed | 16m/min |
| Mandrel expansion | Hydraulic expansion |
| Feed direction | From left to right |
| Production time | 120 days |
Coil Feed Line Working Process
Connect power->
Machine start->
Loading coil to coil car ->
Coil card load coil to Uncoiler machine ->
Uncoiling coil to straightener ->
Leveling strip (Feeding roller feed strip into leveler part -> leveler rollers are gear driven, motor drive speed reducer to adjust leveling speed-> Leveler rollers relieve the stress from coil strip to ensure good flatness) ->
Feeding machine ->
Feed the setting length to Punch press machine ->
Stamping with tooling ->
Product

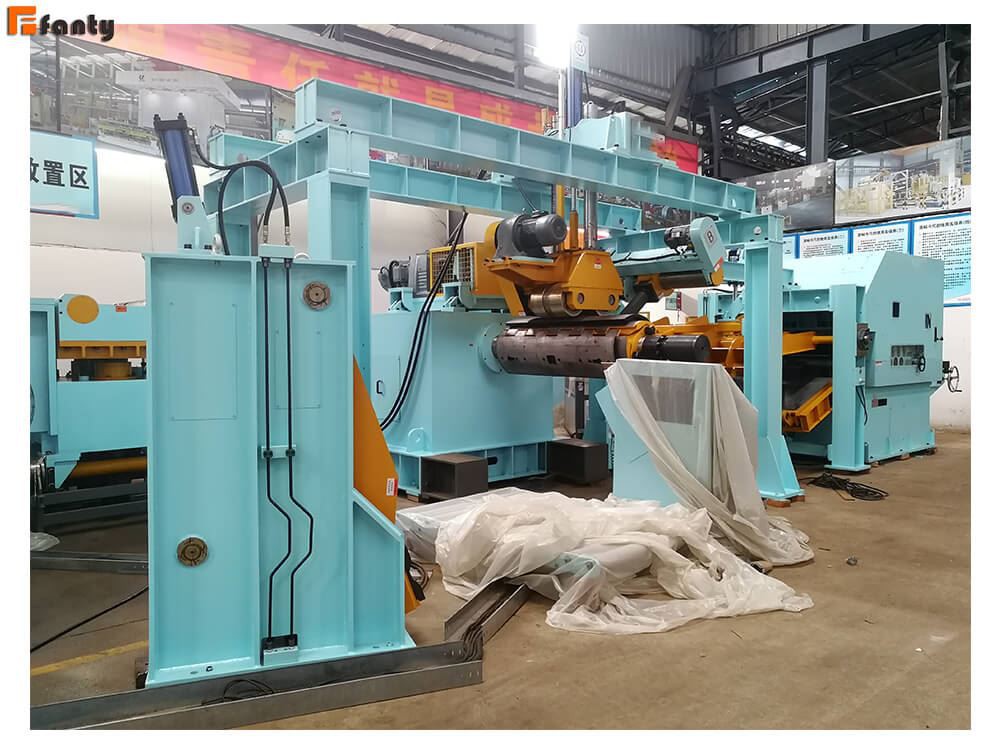

Coil Feed Line Images
Package and Delivery
Delivered to South America market.
Put machine into exporting standard plywood case and delivered by flat Rack Container.
FAQ
What is your delivery time?
Generally, we will take 7 to 60 working days for standard machine after receiving your advance payment.
Uncoiler machine 7-15 days.
Straightener machine 15 days.
Stainless steel coil feeder machine 7-15 days
2 IN 1 Feedlines 20 days.
3 IN 1 Servo straightener feeder with uncoiler 60-90 days.
High speed press machine and precision press machine 7-30 days.
For customized high precision, speed, thick (10-15mm) and width (1800mm-2200mm) coil feed line (3 in 1 feed line), we need 110-150 days).
How do you install machine for customer?
1. For simple machine, including uncoiling, straightening, feeding, 2 in 1 de-coiler and straightener, we have manual to help user how to make installation and operation.
Also we can provide video to help user make installation.
2. For press feeding system, Automatic Uncoiling Straightening Feeding 3 In 1 Machine, we will provide detail manual, we also provide oversea installation and operation training if need.
