NC Straightening Feeder 3 In 1 Machine
Company Information
Sheet metal stamping peripheral automation equipment is a specialty of Shenzhen Fanty Machinery Equipment Co., Ltd. High standards are used in the selection of parts at our facility, which has been using German and Japanese technology. We insist on adhering to original design requirements for the assembly procedure and spare components, and we integrate them into each of our manufacturing processes. These tools have made significant progress in helping numerous factories increase productivity, lower personnel management costs, safeguard worker safety, and reap their benefits.
NC Straightening Feeder 3 In 1 Machine Specification

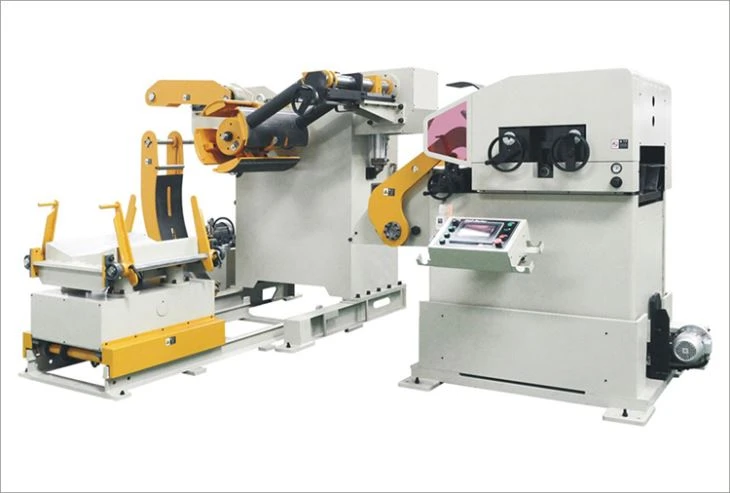

NC straightener feeder 3 in 1 machine is most widely used for auto parts, microwave oven plate, TV plate etc. space-saving production line specifically designed. The DSF3 series can handle materials with widths and thicknesses of up to 400 mm by 1000 mm. The DSF3 series can handle materials with widths and thicknesses of up to 400 mm by 1000 mm.
ITEM | DSF3-400 | DSF3-600 | DSF3-800 | DSF3-1000 |
MATERIAL WIDTH（mm） | 50~600 | 50~600 | 50~800 | 50~1000 |
THICKNESS（mm） | 0.3~4.5 | 0.3~4.5 | 0.3~4.5 | 0.3~4.5 |
COIL WEIGHT（kg） | 5000 | 5000 | 5000-7000 | 7000 |
COIL O.D.（mm） | 1400 | 1400 | 1400 | 1400 |
COIL I.D.（mm） | 508 | 508 | 508 | 508 |
MAX. FEED LENGTH（mm） | ~500* | ~500* | ~500* | ~500* |
LINE SPEED（m/min） | 16~24 | 16~24 | 16~24 | 16~24 |
WORKING ROLLS（pcs） | TOP 4/ DOWN 3 | TOP 4/ DOWN 3 | TOP 4/ DOWN 3 | TOP 4/ DOWN 3 |
FEEDING ROLLS（group） | 1 | 1 | 1 | 1 |
MAIN MOTOR | AC4.4 | AC4.4 | AC5.5 | AC7.5 |
EXPANSION | HYDRAULIC | HYDRAULIC | HYDRAULIC | HYDRAULIC |
REEL MOTOR（kw） | 2.2 | 2.2 | 3.7 | 3.7 |
POWER（V） | 3PHASE 220V/380V/50HZ | |||
OPERATING AIR (Mpa) | 0.49 | 0.49 | 0.49 | 0.49 |
Straightening Performance | |||||
ITEM | DSF3-400 | DSF3-600 | DSF3-800 | DSF3-1000 | |
MATERIAL THICKNESS（mm） | 0.3~0.8 | 400 | 600 | 800 | 1000 |
1.0 | 750 | ||||
1.2 | 700 | 600 | |||
1.6 | 590 | 480 | 430 | ||
1.8 | 500 | 420 | 380 | ||
2.0 | 430 | 370 | 330 | ||
2.3 | 360 | 320 | 290 | ||
2.8 | 370 | 290 | 250 | 230 | |
3.2 | 300 | 250 | 220 | 200 | |
4.5 | 160 | 160 | 150 | 110 | |
Remark: Above figures are for the material having yield strength of 245N/mm², tensile strength of 392N/mm² | |||||
NC Straightening Feeder 3 In 1 Machine Standard Accessories
1.Electric eye loop control system
2.Feed and straightener rolls with hard chrome finished
3.Outgoing catenary to assist and support the material
4.Feeding line easily adjusted by advance worm gear screw jacks device
5.Reference indicator adjuster
6.Inverse curve roll-easy to set up curve or down curve feeding exit direction
7.Decoiler with air disc brake device
8.Decoiler with threading tables device
9.Decoiler with inverter device
10.Coil side guide
Coil tip flatness device
Coil pressing arm
NC Straightening Feeder 3 In 1 Machine Features
1.Working space will be minimized by innovative structure of the machine.
2. A human-computer interface has been implemented to make operating and feeding easier.
3. To ensure highly precise feeding, Japanese motors are used.
4.After undergoing an unique heat treatment, feeding and straightening rollers are distinguished by high hardness, superior abrasion resistance, and extended lifespan.
5. Options are available for punching machines of various sizes and operational needs.
6.High quality, great performance, humanity, automation.
7.Adopt servo motor and drive from YASKAWA. Servo motor can be customized.
8.Auto Feeder Electrical Cabinet PLC from MITSUBISHI.
Package and Delivery
Package: NC straightener feeder 3 In 1 machine always loading via full container.
Delivery: FCL by sea.
FAQ
Q: What products do you have?
Our main products are:
Stock decoilers
Straightener
Stainless steel coil feeder
Decoiler straightener 2 in 1 machine
Decoiler Straighter Feeder 3 in 1 machine
High speed press and precision press machine
Q: How can I trust you that machines pasted testing running before shipping?
1) 1) For your reference, we can capture the testing video.
2) You are welcome to visit us and test machine in our factory.
Q: How is your after sales support?
We provide technical support on line as well as overseas services by skillful technicians.
Q: Can I get a sample?
We are unable to provide any machine samples due to the high cost of the machine.
But if you want to know our machine better, you can visit us to test the machine in our workshop. On request, we can also offer a machine that is already running video.
