NC Servo Roll Feeder
Company Information
Shenzhen Fanty Machinery Equipment Co., Ltd specializes in the design, production and sales of stamping automation equipment. We provide automatic stamping periphery equipment for various of thickness metal coils.
Automatic stamping periphery equipment is suitable for metal stamping, metal products, electronic parts, LED connector, hardware, electronic components and auto parts.

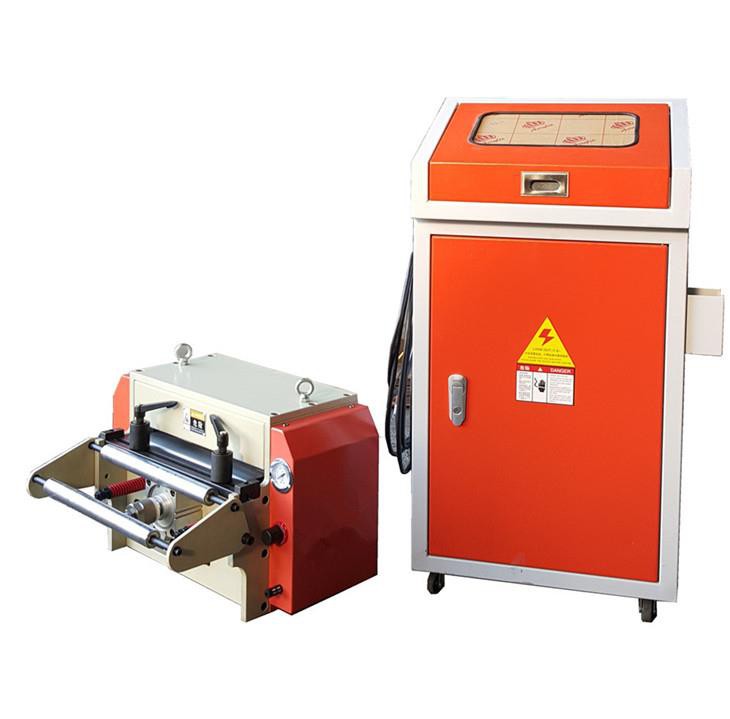

Specification of NC Servo Roll Feeder
NC servo roll feeder is powered by servo-motor with the advantages of more feeding accuracy and simple operation. The PLC system helps the feeder moves stable.
While the feed length required more than 200mm, NC servo roll feeder is more suitable comparing with the other feeders. It's more stable and with longer service life
Item: NCF Series
Max. width: Up to 1300mm
Thickness: 0.5-4.5mm
Line speed: 16m/min
Feeding accuracy: ±0.2mm
Max. feeding length: 9999.99mm
Releasing way: Mechanical Or Pneumatic
Roll pressure: Spring type
Feeding line height: 80-150mm
Servo Motor Driver: Mitsubishi, Japan
PLC: Mitsubishi, Japan
Features of NC Servo Roll Feeder
1. Phase-style feeding function
2. Humanized manual mode
3. High efficiency release device
4. Independent programming
5. Controlled by CSS system for fast and accurate performance
6. Suitable for different material thickness, different length of feed processing
7. Suitable for high speed and long size feed, increase production capacity and feed precision
8. With feeding length and feeding speed of the key digital code, operators can set any size
Structure of NC Servo Roll Feeder
1. It adopts high quality servo motor, so can shorten time of feeding testing efficiently.
2. It adopts high-sensitivity encoder, to ensure feedback and improve feeding precision.
3. It adopts good belt, to avoid gears gap, to avoid gear abrasion, without noise, without lubrication, safe, environmental.
4. Motor is installed in its structure internally, to avoid possible damages

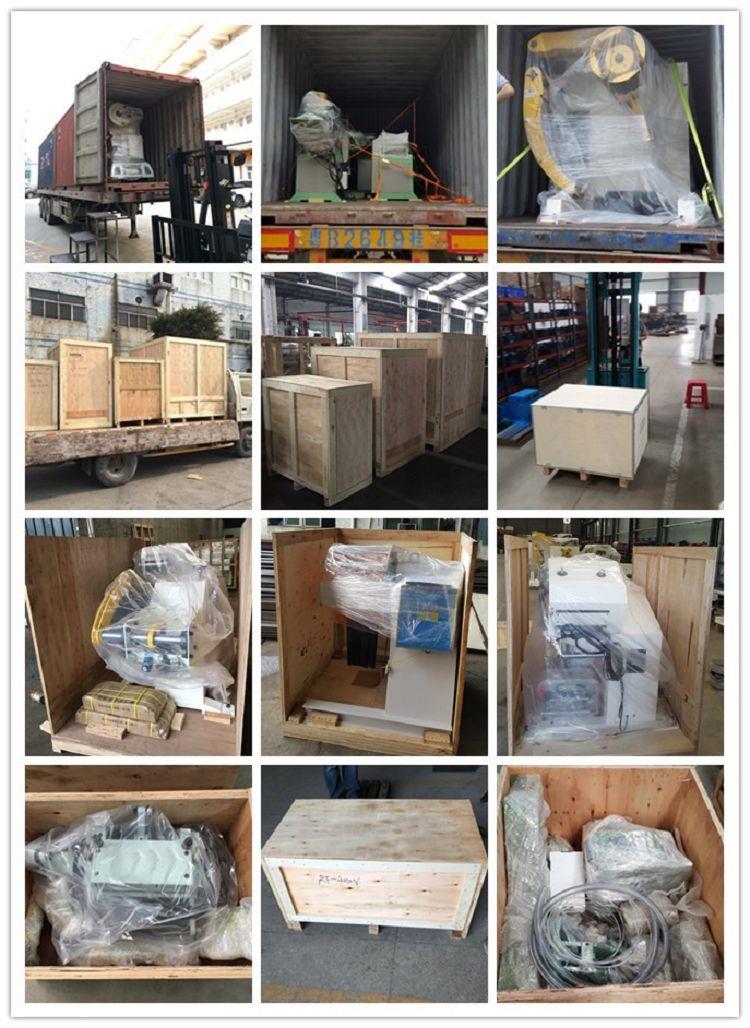

Package and Delivery
Package: Servo roll feeder machine always well packed with wooden box.
Delivery: Air or ocean.
FAQ
Q: What is the term of payment?
We accept T/T and L/C Payment.
30% deposit, 70% balance before delivery.
Q: What products do you have?
Our main products are:
Stock decoilers
Straightener
Stainless steel coil feeder
Decoiler straightener 2 in 1 machine
Decoiler Straighter Feeder 3 in 1 machine
High speed press and precision press machine
Q: How do you install machine for customer?
1. For simple machine, including uncoiling, straightening, feeding, 2 in 1 de-coiler and straightener, we have manual to help user how to make installation and operation.
Also we can provide video to help user make installation.
2. For press feeding system, Automatic Uncoiling Straightening Feeding 3 In 1 Machine, we will provide detail manual, we also provide oversea installation and operation training if need.
