Description
Decoiler machine capacity ranging: Maximum load weight 30ton, Maximum width 1800mm
The design of our reels incorporates a unique "bearing tube" with dual cup and cone Timken bearings to the mandrel and a heavy duty cabinet base. Both motorized and pull-off type reels are available, depending on the application. Most models are available as Traveling Reels that can be combined with automatic centering functions.
Specification
Model: MT-F
Material Width: Max. 1800mm
Material Weight: Max. 30 tons
Coil Inner Diameter: Ø508-610mm
Max. Outer Diameter: Ø1300mm
Press Arm: Option for thick material, pneumatic
Expansion: Hydraulic
Coil Car: Option

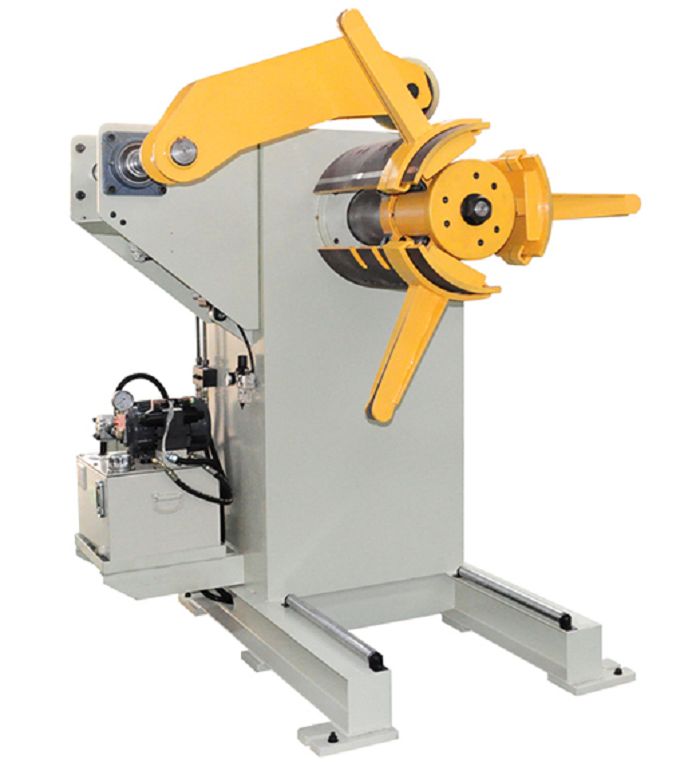

Motorized Decoiler Details
Motorized Decoiler Application
Heavy duty stock reels decoilers is widely work together with press feed lines, slitting lines, roll forming lines, and so on.
De-coilers is used for producing hardware fittings, spring clips, crimp connectors, household appliance, automobile industry, medical apparatus and instruments.
Motorized Decoiler Construction
Construction includes steel plate and heavy structural sections. Plate seams are seal welded. Structural bracing is included where required. Mandrel expansion & contraction is by a link system including bearings.
Safety
The decoiler rotary drive system and mandrel expansion power is fully guarded. The pendant control allows disabling automatic rotation during coil loading.

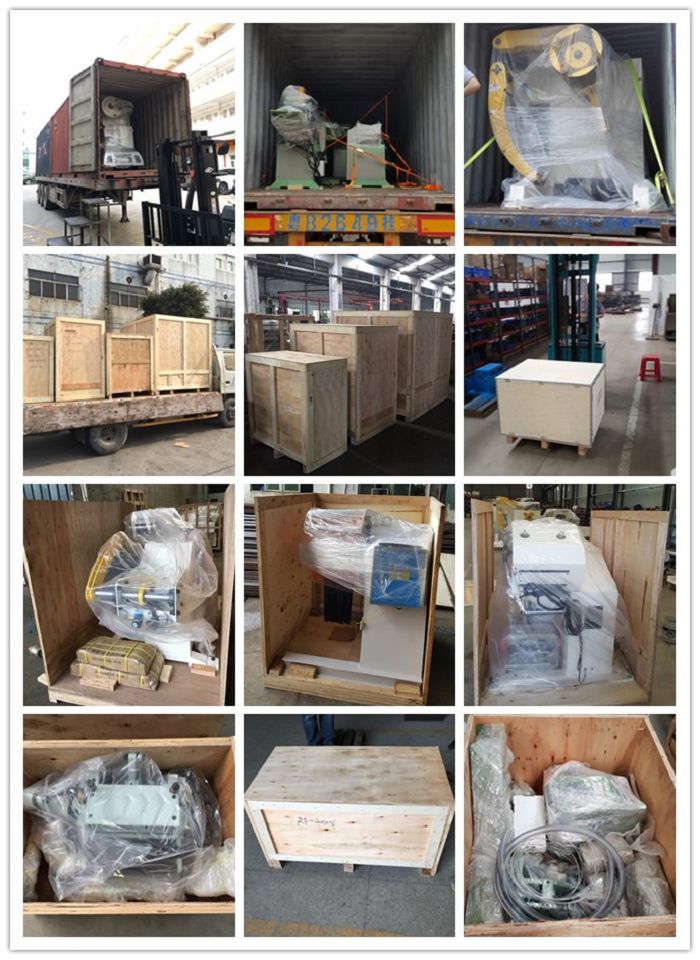

Packing and Shipping
FAQ
Q: What kinds of machine do you have?
We supply high-performance feeding line for stamping line.
Coil steel straightener, servo feeder, decoiler
Compact press feeding line, fast servo feeder system
High Speed Press and Automatic Periphery Equipment
Q: How about your delivery time?
Generally, it will take 7 to 60 working days after receiving your advance payment.
Uncoiler machine 7-15 days.
Straightener machine 15 days.
Stainless steel coil feeder machine 7-15 days
2 IN 1 Feedlines 20 days.
3 IN 1 Servo straightener feeder with uncoiler 60-90 days.
High speed press machine and precision press machine 7-30 days.
Q: How to select de-coiler machine?
Provide us following parameters:
Max. width of your strip coil
Max. & Min. thickness of your strip coil
Max. weight of your strip coil
Inner diameter of your coil
Outer diameter of your coil
Motorized or non-motorized of de-coiler which you want?
